Flexible Shaft Grinders, Grinding Machines and its Accessories Manufacturer, Supplier and Exporter
We are Manufacturer, Supplier and Exporter of Flexible Shaft Grinders ( Speedo 58 / 28 ) and Our setup is situated in Solapur, Maharashtra, India. Our Product range widely used in applications like Heavy Fettling and Cutting, Cutter Wheel, Polishing.

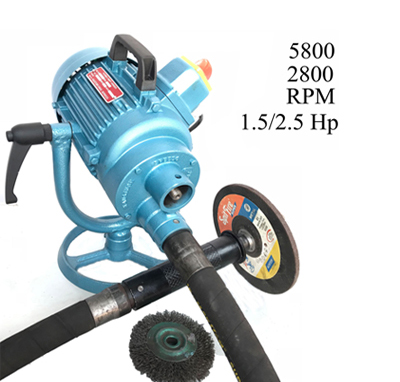

Speed : 5800 and 2800 RPM
Motor :
- 582825 - 2.5 Hp / 415 V / 3 Ph 50 Hz
- 582815 - 1.5 Hp / 415 V /3 Ph 50 Hz
Holders : Wh 15 / D-15 / Buff. Attach. / Collate holder
Shaft Size : 15 mm Size
Length : 1.5 Meter to 6.0 Meter Metal / Rubber
Std. Length : 2.0- or 3.0-Meter Rub / Metal
Application : Heavy Fettling and cutting, Cutter Wheel, grinding wheel plain / DCD up to 9 (2.5hp), 7 (1.5 hp) Buffing, Polishing,
Area : Foundries for primary heavy fettling and cutting, Forging / Fabrication shops for weld grinding and buffing
Flexible Shaft Size and Type | Holder |
15 X 2000 Flex. Shaft Metal / Rubber 15 X 1500 Flex. Shaft Metal / Rubber 15 X 3000 Flex. Shaft Metal / Rubber |
WSH 15 WH15 with Col. Holder |

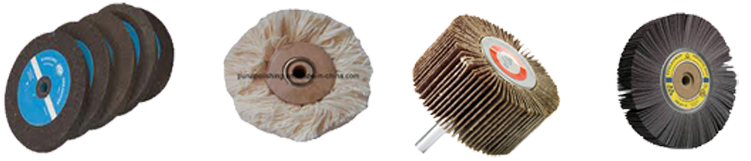

![speedo28_7-1](images/speedo28_7-1.png)

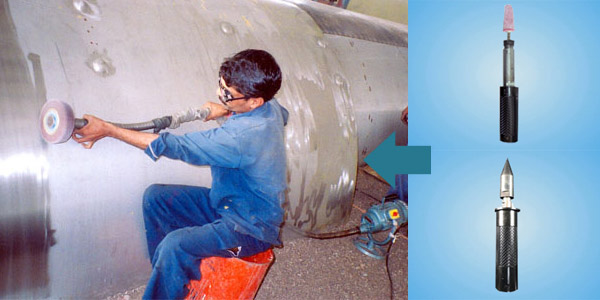

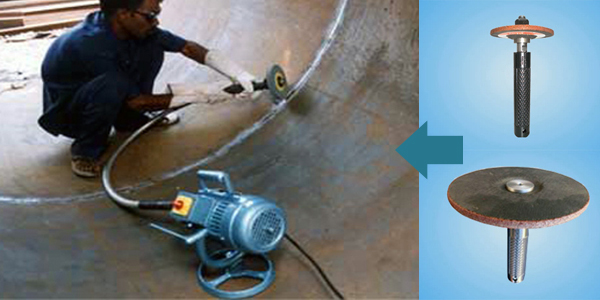

Application of Flexible Shaft Grinders ( Speedo 58-28 )
![Flexible Shaft Grinders](images/flexible-shaft-grinders-speedo28-1.jpg)

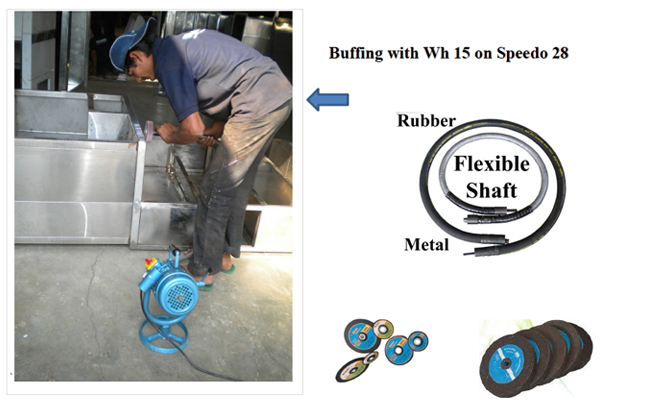

![Weld Gringing with 5” Wheel Wh 15, flexible-shaft](images/flexible-shaft-grinders-speedo28-2.jpg)

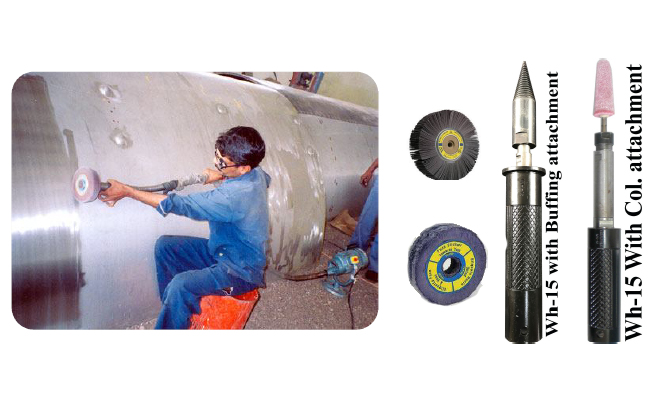

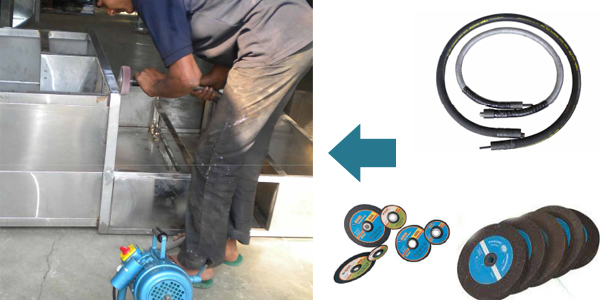

![Buffing with Wh 15 on Speedo 58/28](images/flexible-shaft-grinders-speedo58-4.jpg)
Flexible Shaft Size and Type | Holder |
15 X 2000 Flex. Shaft Metal/Rubber | WH15 with Col. Holder |
15 X 1500 Flex. Shaft Metal/Rubber | WH15 with Col. Holder |
15 X 3000 Flex. Shaft Metal/Rubber | WH15 with Col. Holder |
![Flexible Shaft Metal/ Rubber Flexible Shaft Metal/ Rubber](images/flexible-shaft-metal-rubber.jpg)
Variety of Tool Holders
![wh-15](images/wh-15.jpg)
WH 15
![d-15](images/d-15.jpg)
D 15
![wheel-gurad](images/wheel-gurad1.jpg)
WH 15 Wheel Guard
![speedo-58-1](images/flexible-shaft-grinders-speedo-15.jpg)
D - 15
![speedo-58-1](images/speedo-58-1.jpg)
WH 15-Collate Adaptor with 6 mm Collate
![WH 15 With Buffring Attachment](images/wh-15-buffring-attachment.jpg)
